Ravenna fluted stone wall panel, isometric view
Reference visual. Final panel size and stone are project-specific.

SGF-114

RavennaOrganic Stone Fluting Pattern

Long sweeps and two tight coves composed as one motif, centred on the panel. Suited to a single feature panel or stone wall art.

This organic stone fluting pattern is part of our stone fluting designs & patterns collection for fluted wall panels.

Pattern
Organic
Panel size
2,000 × 3,000 mm
Orientation
Vertical or horizontal
Reference thickness
20 mm
Internal radius
From 1.5 mm

Request informationRequest 2D file

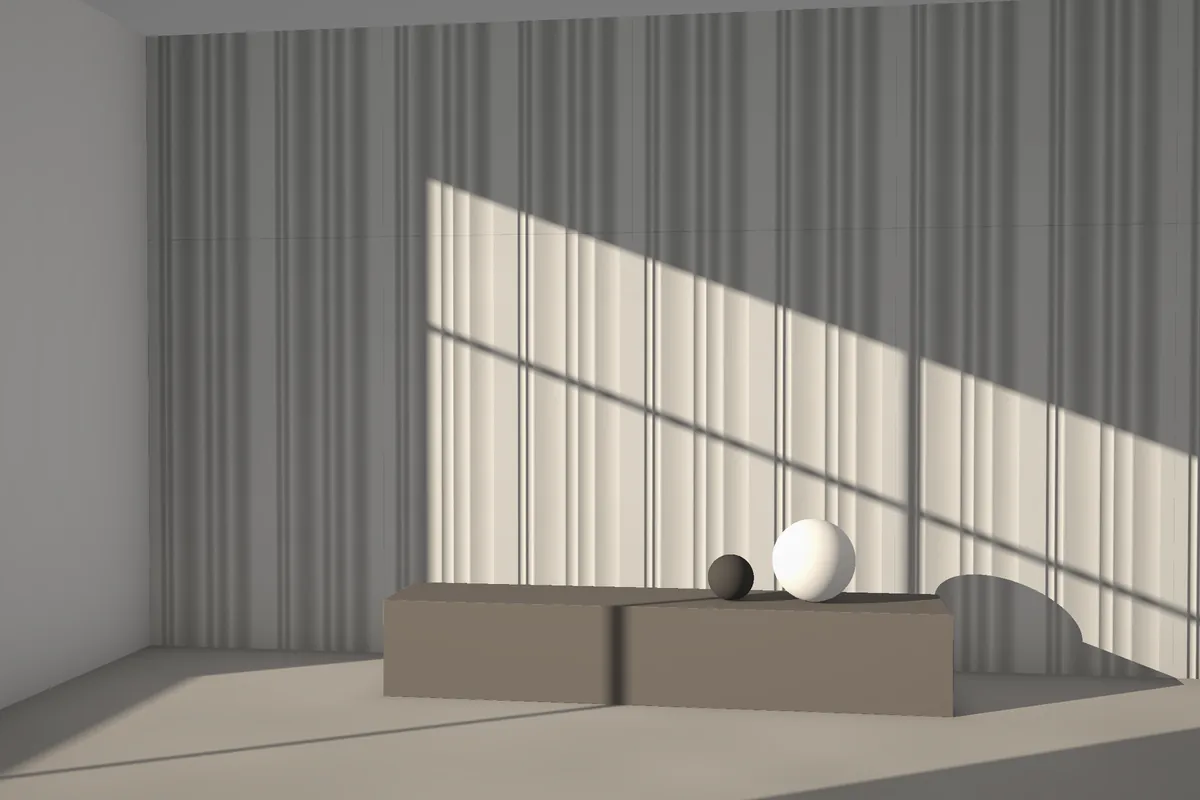

Ravenna on a feature wall

Application visualisation for the selected fluting profile. Final colour and grain depend on the stone selected.

Ravenna fluted stone wall cladding on a feature wall in daylight, visualised in grey granite

Views and section

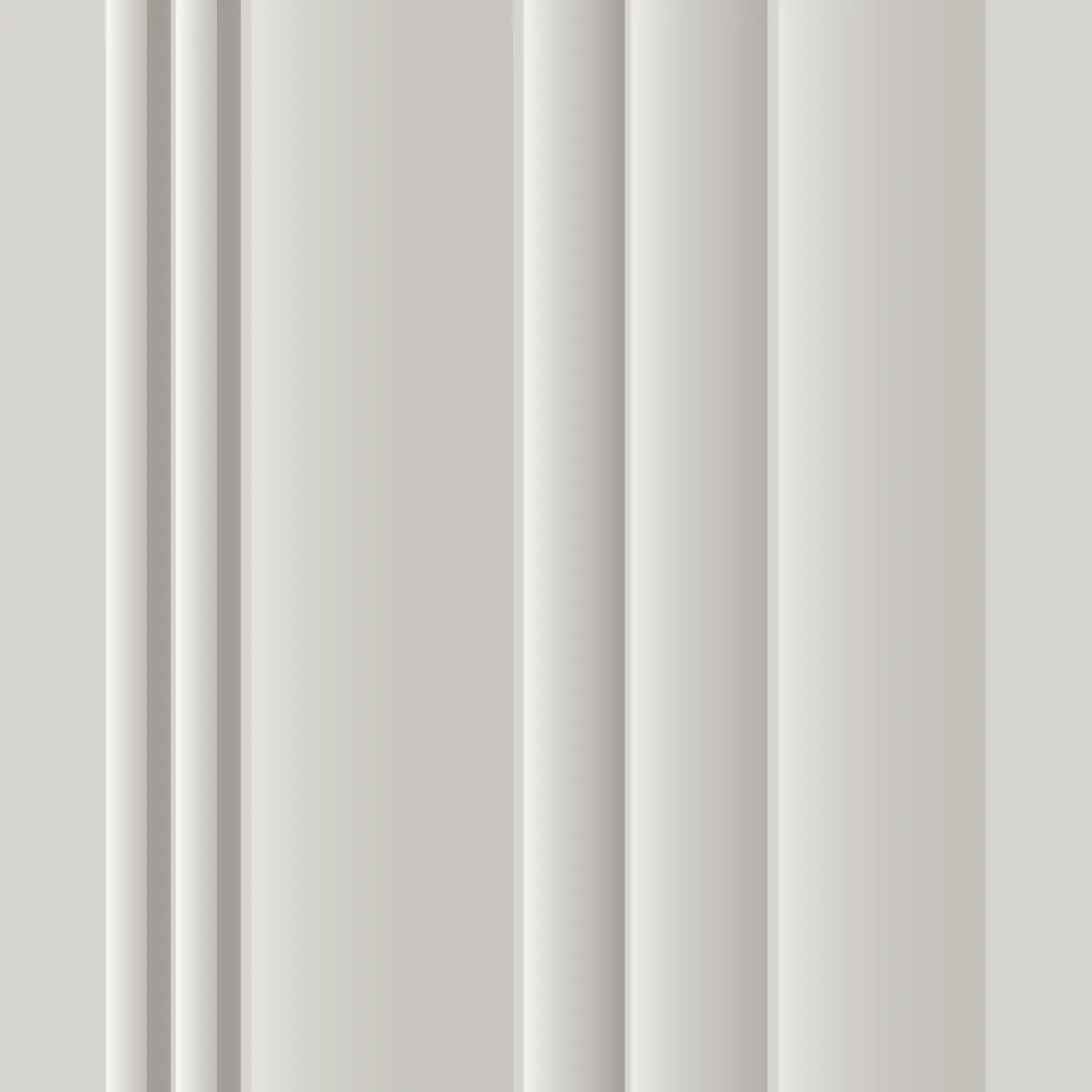

Ravenna fluted wall panel, front view
Front view

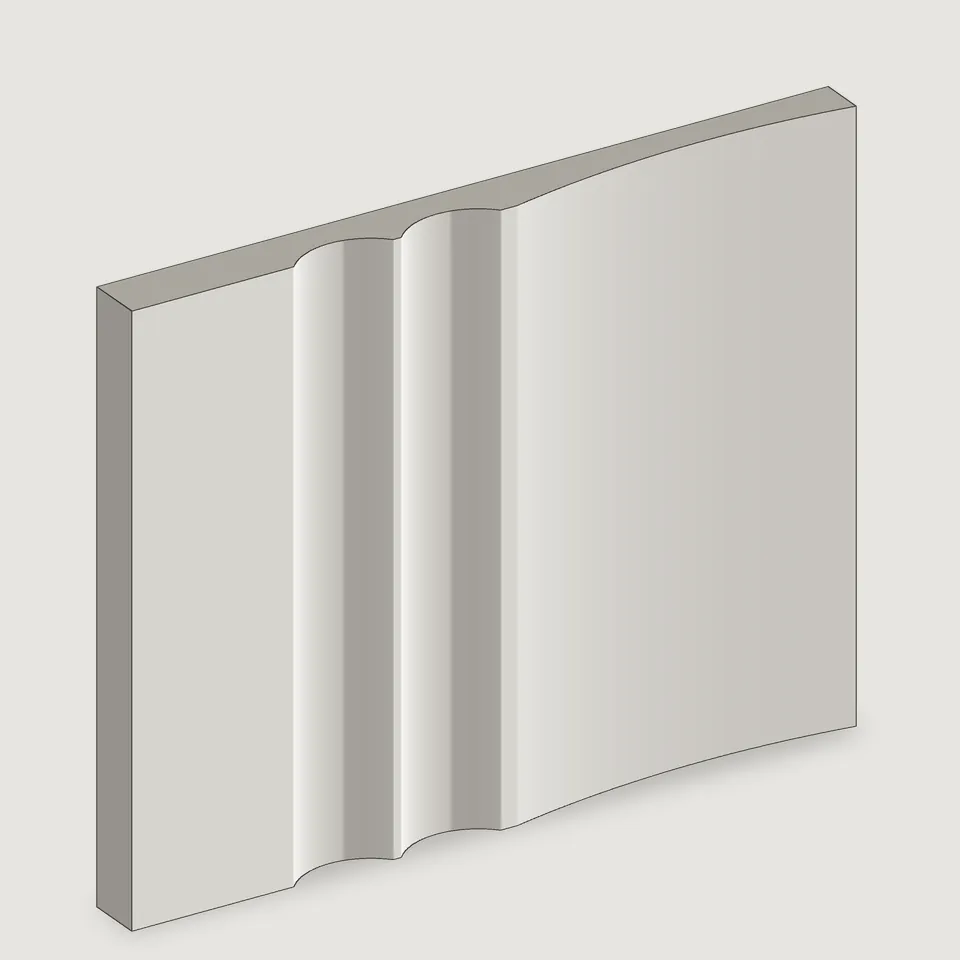

Carved edge of the Ravenna fluted stone panel
Carved edge / profile
Section across the Ravenna panel
Technical section

Dimensioned 2D section, DXF or PDF

Available on request for your drawings and specification.

Request 2D file

Stones you can choose from

This profile can be produced in the materials selected in the CMS.

About Ravenna

Long sweeps and two tight coves composed as one motif, centred on the panel. Suited to a single feature panel or stone wall art.

Pattern
Organic fluting
Maximum panel size
3000 × 2000 mm
Orientation
Vertical or horizontal
Minimum internal radius
1.5 mm
2D section file
DXF or PDF on request
Panel size
Any size, up to 3 × 2 m
Use
Interior walls and exterior cladding
Customisable
Profile, depth and rhythm

See it in stone before you specify it

A render shows the geometry. A physical sample shows how the flutes catch light, grain and finish in the stone you choose.

Where
Kishangarh, Rajasthan
From Jaipur
About 100 km
Visits
By appointment

Book a factory visitCall +91 91458 50909

Request information

Tell us what you need: price, the 2D file, a sample or a factory visit. The design is attached to your request.

SGF-114

Ravenna

Prefer WhatsApp? Message +91 91458 50909
