Breaking Wave fluted stone wall panel, isometric view
Reference visual. Final panel size and stone are project-specific.

SG-03

Breaking WaveWave Stone Fluting Pattern

A steep crest falling into a long trough. Strong shadow lines suit large walls and natural stone front elevations.

This wave stone fluting pattern is part of our stone fluting designs & patterns collection for fluted wall panels.

Pattern
Wave
Panel size
2,000 × 3,000 mm
Orientation
Vertical or horizontal
Reference thickness
20 mm
Internal radius
From 1.5 mm

Request informationRequest 2D file

Breaking Wave on a feature wall

Application visualisation for the selected fluting profile. Final colour and grain depend on the stone selected.

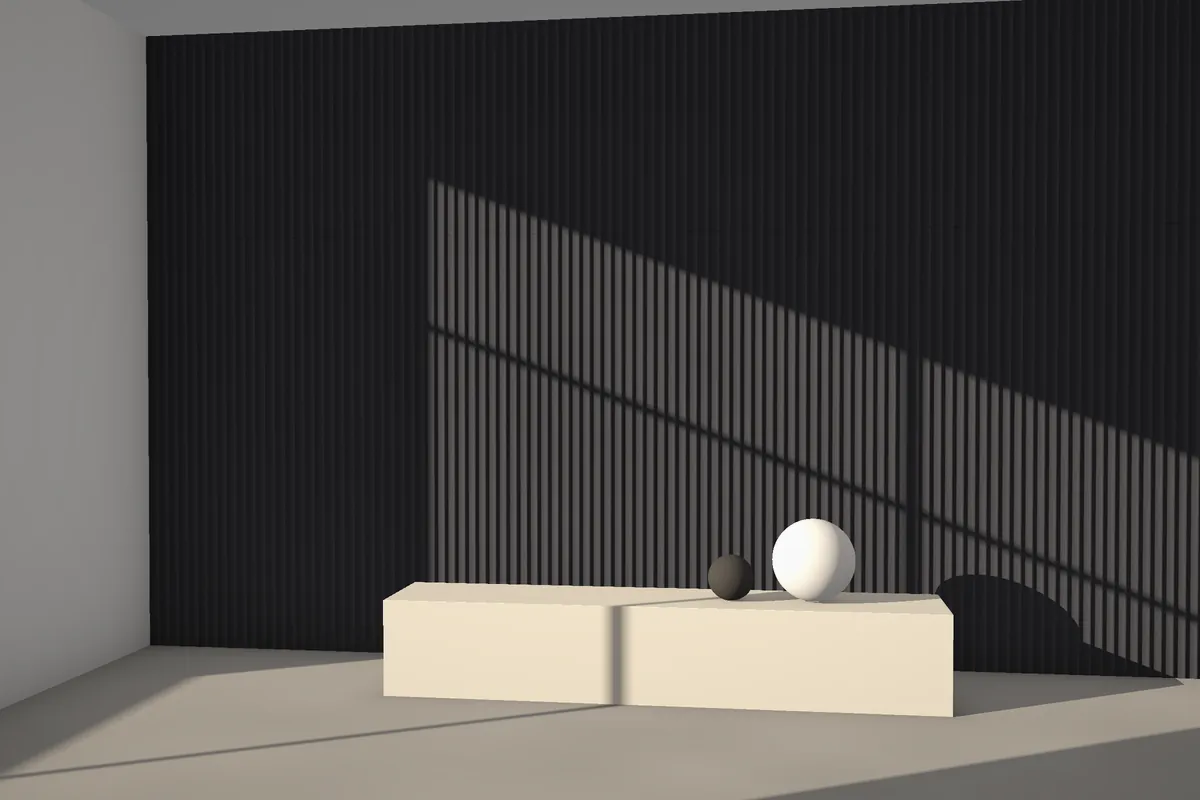

Breaking Wave fluted stone wall cladding on a feature wall in daylight, visualised in black granite

Views and section

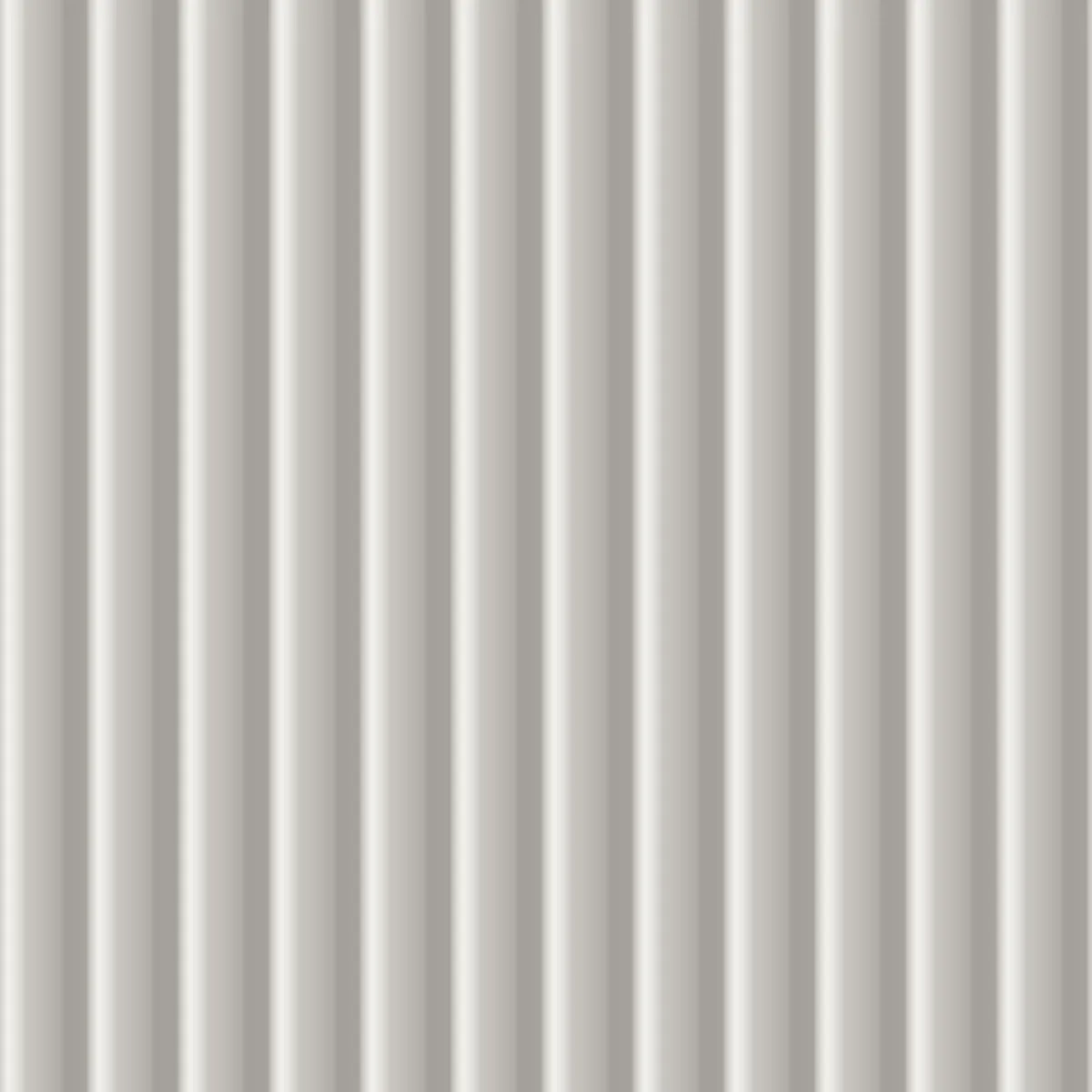

Breaking Wave fluted wall panel, front view
Front view

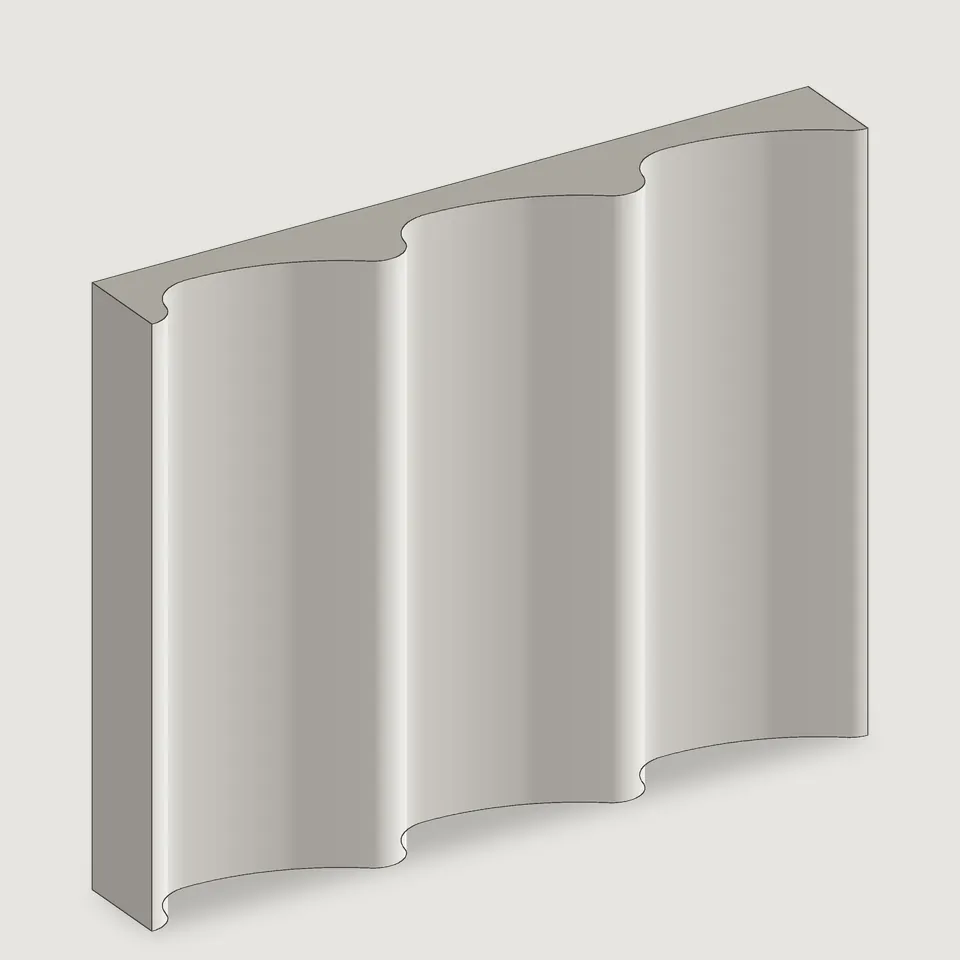

Carved edge of the Breaking Wave fluted stone panel
Carved edge / profile
Section across the Breaking Wave panel
Technical section

Dimensioned 2D section, DXF or PDF

Available on request for your drawings and specification.

Request 2D file

Stones you can choose from

This profile can be produced in the materials selected in the CMS.

About Breaking Wave

A steep crest falling into a long trough. Strong shadow lines suit large walls and natural stone front elevations.

Pattern
Wave fluting
Maximum panel size
3000 × 2000 mm
Orientation
Vertical or horizontal
Minimum internal radius
1.5 mm
2D section file
DXF or PDF on request
Panel size
Any size, up to 3 × 2 m
Use
Interior walls and exterior cladding
Customisable
Profile, depth and rhythm

See it in stone before you specify it

A render shows the geometry. A physical sample shows how the flutes catch light, grain and finish in the stone you choose.

Where
Kishangarh, Rajasthan
From Jaipur
About 100 km
Visits
By appointment

Book a factory visitCall +91 91458 50909

Request information

Tell us what you need: price, the 2D file, a sample or a factory visit. The design is attached to your request.

SG-03

Breaking Wave

Prefer WhatsApp? Message +91 91458 50909

I would like
